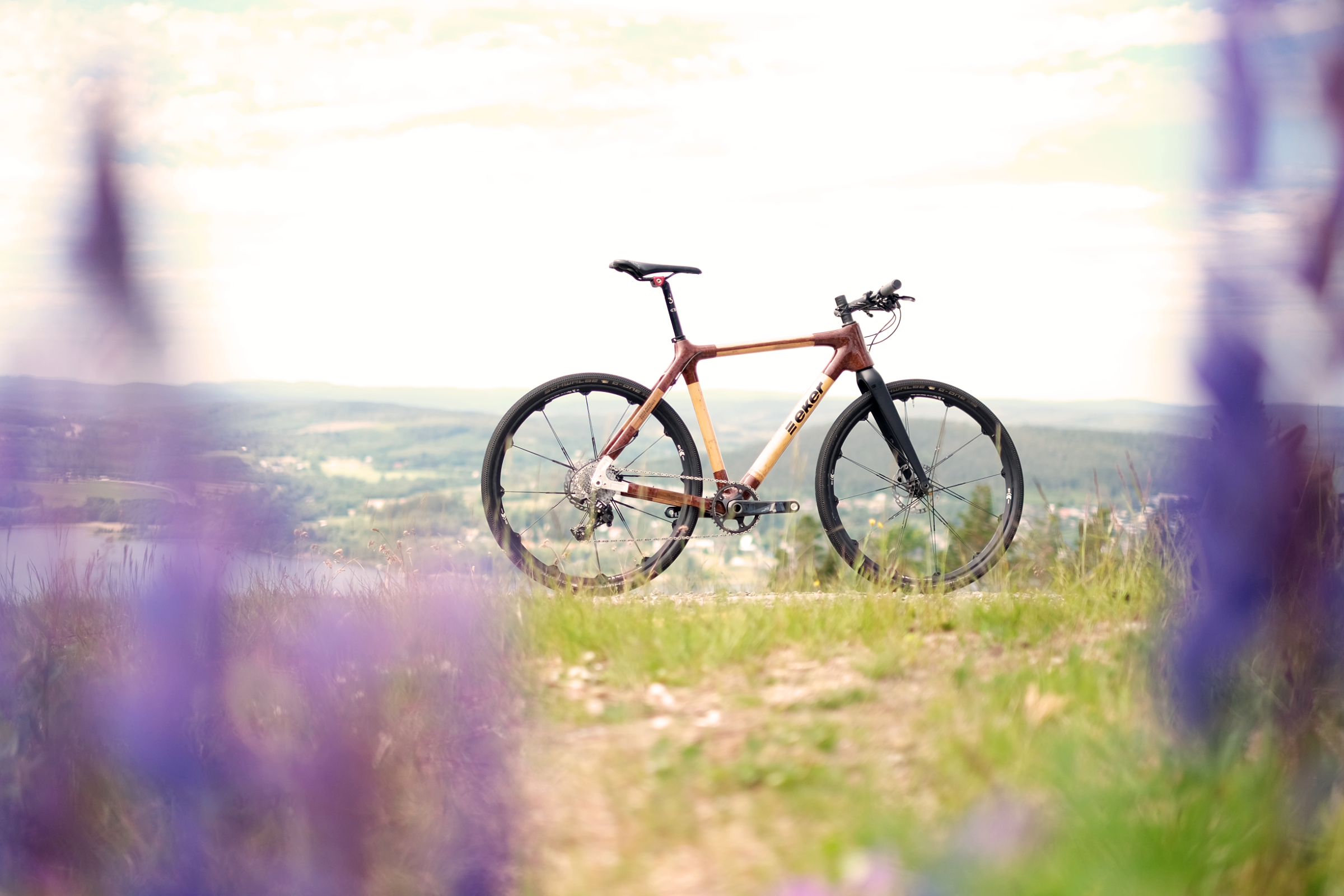

A commuter bike that gets to the point.
Eker Grus is a versatile bike that is swift, smooth and elegant, weighing in at 9,8 kg. The frame is made by hand, all the way from harvesting the tubes to preparing and joining them into unique pieces of art which nevertheless can withstand long riding in all types of conditions. The Eker Grus bike combines a light and rigid constructed frame, with top of the line components.
Specifications
| FRAMESET | |
| Frame | Eker Varv 01, BB86, 12x142 mm thru-axle, MEDIUM |
| Fork | Aluminium fork, 1 1/8"-1 1/5", QR, flat mount |
| Headset | XLC Headset HS-I11 |
| COCKPIT | |
| Handlebars | Flat bar 600 mm matt black Ø31.8 mm |
| Stem | XLC Stem ST-M32 60 mm +-6° |
| Saddle | XLC Saddle SA-E16 Everyday 3 |
| Seat post | XLC Seatpost SP-O01 350 mm Ø27,2 mm |
| BRAKES | |
| Brakes | Avid BB5 mechanical disc brakes |
| Brake discs | XLC Rotor 140 mm |
| DRIVETRAIN | |
| Shifters rear | SRAM Trigger Shifter Apex 1 Black 11 Speed rear |
| Rear derailleur | SRAM Rear derailleur Apex 1 1x11 speed Long cage |
| Cassette | SRAM Cassette PG-1130 11 speed 11-36T |
| Crankset | SRAM Crankset Apex 1 GXP 42T 175 mm |
| Bottom bracket | SRAM Bottom bracket GXP PressFit BB86, Road GXP |
| Chain | SRAM Chain PC-1110 Solid pin, 11 speed Apex |
| WHEELS & TIRES | |
| Wheels | XLC Wheel WS-D01 700c |
| Tyres | SCHWALBE Road Cruiser 700c 35 mm (37-622) |
Geometry
| Size | Small | Medium | Large | X Large |
| Seat tube length (st) | 510 | 540 | 560 | 580 |
| Top tube length (tt) | 525 | 542 | 558 | 572 |
| Head tube length (ht) | 115 | 140 | 160 | 175 |
| Head tube angle (ha) | 72° | 72° | 72° | 72° |
| Seat tube angle (sa) | 74,0° | 74,0° | 74,0° | 74,0° |
| BB drop (drop) | 65 | 65 | 65 | 65 |
| BB height (height) | 288 | 288 | 288 | 288 |
| Chainstay length (cs) | 430 | 430 | 430 | 430 |
| Wheel base | 1 000 | 1 018 | 1 035 | 1 050 |
| Stack | 534 | 557 | 576 | 591 |
| Reach | 371 | 381 | 392 | 402 |
| Stem length | 100 | 100 | 110 | 110 |
| Handlebar width | 400 | 420 | 420 | 440 |
| Crank length | 170 | 172,5 | 172,5 | 175 |
| Seat post diameter | 27,2 | |||
| Seat post length | 350 | 350 | 400 | 400 |
| Wheel radius incl. tyres | 700C (ISO 622) | |||
| Standover height | 786 | 812 | 834 | 850 |
| Fork rake/offset | 50 | |||
| Trail | 62 | |||
| Fork length, full | 390 | |||
Accessories
| Weight | 10 kg |
|---|---|
| Dimensions | 151 × 24 × 92 cm |
| Size | Extra large, Large, Medium, Small |
